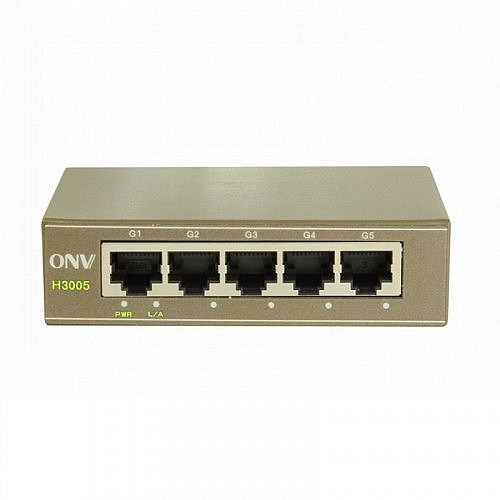

| Model | ONV-H3005 | ONV-H3008 |
| Interface Characteristics | ||
| 5*10/100/1000Base-T RJ45 ports | 8*10/100/1000Base-T RJ45 ports | |
| Fixed Port | (Data) | (Data) |
| 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X | ||
| Ethernet Port | self-adaption. | |
| 10BASE-T: Cat3,4,5 UTP(<=100 meters) | ||
| Twisted Pair Transmission | 100BASE-TX: Cat5 or later UTP(<=100 meters) 1000BASE-T: Cat5e or later UTP(<=100 meters) | |
| Chip Parameter | ||
| IEEE802.3 10BASE-T, IEEE802.3i 10Base-T | ||
| Network Protocol | IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-TX, IEEE802.3x | |
| Forwarding Mode | Store and Forward (Full line speed) | |
| Switching Capacity | 10Gbps (Non-blocking) | 16Gbps (Non-blocking) |
| Forwarding | ||
| Rate@64byte | 7.44Mpps | 11.9Mpps |
| MAC | 2K | |
| Buffer Memory | 2M | |
| Jumbo Frame | 9.2K | |
| LED Indicator | Power: PWR (Green), Network: L/A (Green) | |
| Power Supply | ||
| Total PWR / Input | ||
| Voltage | 5W (DC9-12V) | 7W (DC9-12V) |
| Power Consumption | Standby<1W, Full Load<5W | Standby<2W, Full Load<7W |
| Power Supply | External power adapter, AC100~240V 50-60Hz 0.56A | |
| Physical Parameter | ||
| Operation TEMP / | ||
| Humidity | -20~+55°C, 5%~90% RH Non condensing | |
| Storage TEMP / | ||
| Humidity | -40~+75°C, 5%~95% RH Non condensing | |
| Dimension (L*W*H) | 90*70*27mm | 144*77.5*26mm |
| Net /Gross Weight | <0.2kg /<0.5kg | <0.35kg /<0.6kg |
| Installation | Desktop, Wall mount | |
| Certification & Warranty | ||
| Lightning Protection | Lightning protection: 4KV 8/20us, Protection level: IP30 | |
| CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, | ||
| Certification | RoHS | |
| Warranty | 1 year, lifelong maintenance. | |
