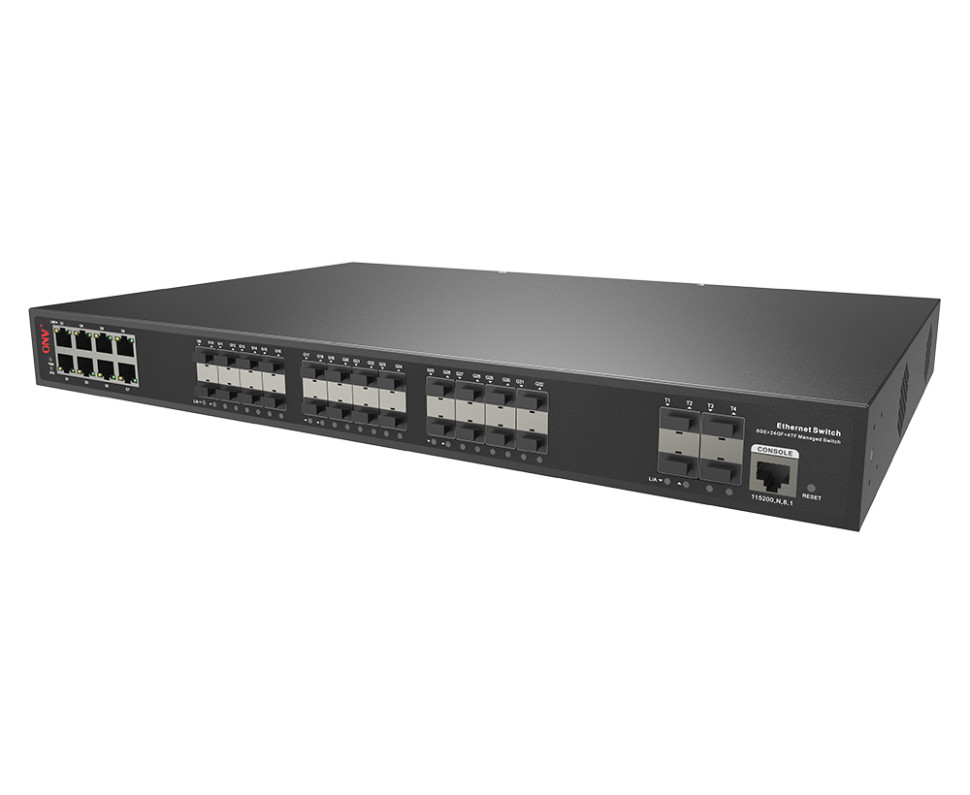

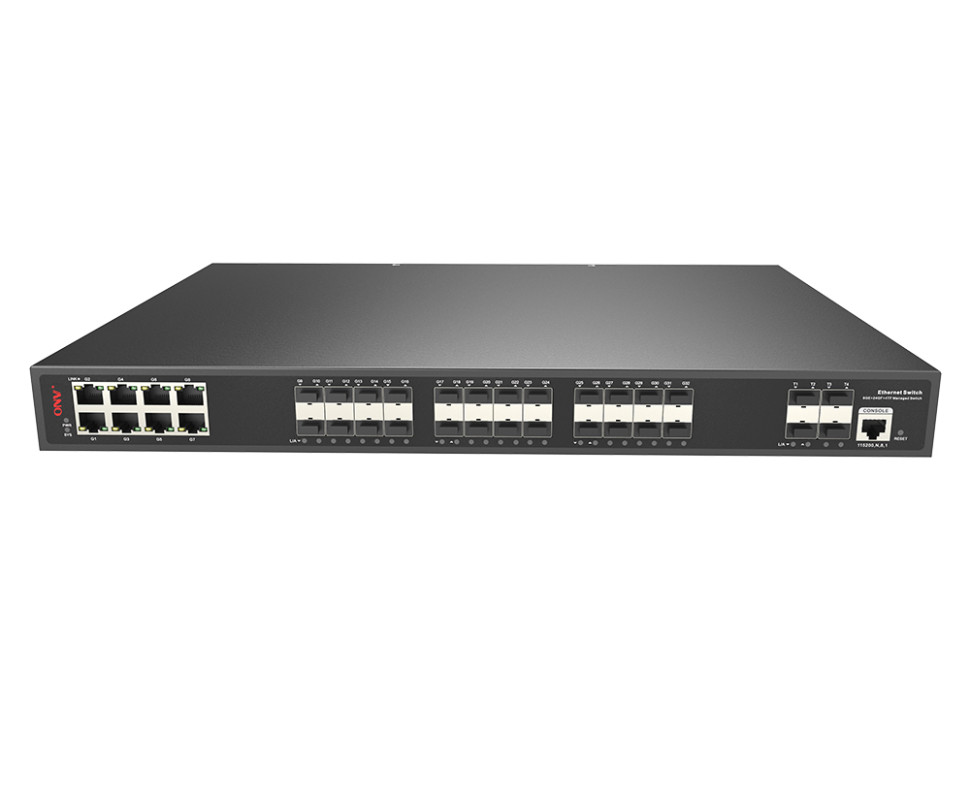

| Model | ONV36368FM |
| Interface Characteristics | |
| 1*Console RS232 port (115200,N,8,1) 4*1/10G uplink SFP+ fiber ports (Data) 8*10/100/1000Base-T RJ45 ports (Data) | |
| 24*100/1000Base-X SFP fiber ports (Data) | |
| Fixed Port | |
| Port 1-8 support 10/100/1000Base-T(X) auto-sensing, full/ half duplex | |
| Ethernet Port | MDI/ MDI-X self-adaption |
| Twisted Pair | 10BASE-T: Cat3,4,5 UTP(<=100 meters) |
| Transmission | 100BASE-TX: Cat5 or later UTP(<=100 meters) |
| 1000BASE-T: Cat5e or later UTP(<=100 meters) | |
| 1/10G SFP+ optical fiber port, default no include optical modules | |
| (optional order single-mode/ multi-mode, single fiber/ dual fiber optical module. LC) | |
| Optical Fiber Port | |
| Optical Fiber Port | Support Turbo overclocking 2.5G optical module expansion and ring |
| Expansion | network |
| Optical Cable/ | Multi-mode: 850nm/ 0-500m(1.25G), 0-300m(10G) |
| Distance | Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km |
| Chip Parameter | |
| Network | |
| Management Type | L2+ |
| IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T | |
| IEEE802.3z 1000Base-X, IEEE802.3ae 10GBase-SR/LR, IEEE802.3x | |
| Network Protocol | |
| Forwarding Mode | Store and Forward(Full Wire Speed) |
| Switching Capacity | 176Gbps |
| Forwarding | 107.14Mpps |
| Rate@64byte | |
| CPU(Hz) | 500M |
| DRAM | 2G |
| Flash | 128M |
| MAC | 32K |
| Buffer Memory | 32M |
| Jumbo Frame | 9.6K |
| Power: PWR (Yellow), System: SYS(Yellow) | |
| LED Indicator | Network: Link (Yellow), Fiber port: L/A (Green) |
| Yes, press and hold the switch for 10 seconds and release it to restore | |
| Reset Switch | the factory settings |

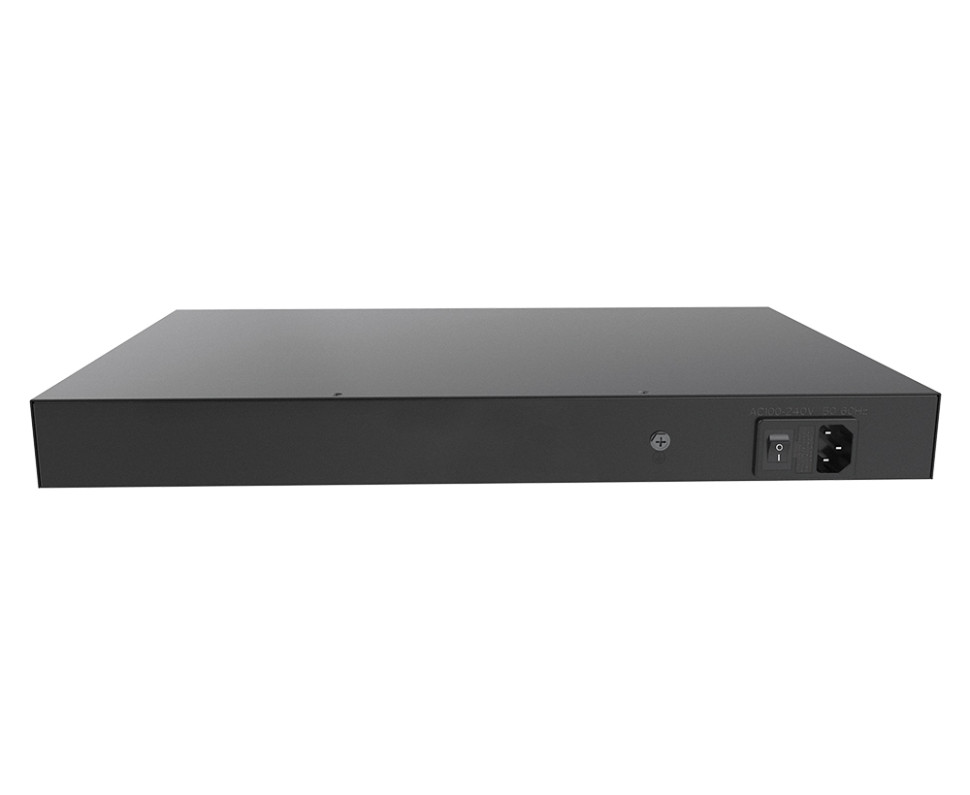

| Power Supply | |
| Total PWR / Input | |
| Voltage | 60W/(AC100-240V) |
| Power Consumption | Standby<20W, Full Load<45W |
| Power Supply | Built-in power supply, AC 100~240V 50-60Hz 1.0A |
| Physical Parameter | |
| Operation TEMP / | |
| Humidity | -20~+55°C, 5%~90% RH Non condensing |
| Storage TEMP / | |
| Humidity | -40~+80°C, 5%~95% RH Non condensing |
| Dimension (L*W*H) | 440*290*44.5mm |
| Net /Gross Weight | <3.5kg/<4.3kg |
| Installation | Desktop, 19 inch 1U cabinet |
| Certification & Warranty | |
| Lightning Protection | Lightning protection: 4KV 8/20us, Protection level: IP30 |
| CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, | |
| Certification | RoHS |
| Warranty | 3 years, lifelong maintenance. |
| Network Management Features | |
| IEEE802.3X (Full-duplex) | |
| Port temperature protection setting No connection port automatic sleep | |
| Port green Ethernet Energy-saving setting Broadcast storm control based on port speed SFP+ optical port DDMI real-time digital diagnosis | |
| The speed limit of the message flow in the access port, mini particle size | |
| is 64Kbps. | |
| Interface | |
| L2+ network management ARP protocol max 1024 entries | |
| Static route/ default route max 128 entries | |
| Layer 3 Features | |
| L3 routing and forwarding, support communication between different | |
| network segments and different VLAN | |
| Access, Trunk, and Hybrid port configurations | |
| Port-based VLAN (4K), IEEE802.1q, QinQ configuration | |
| VLAN | Voice VLAN, Protocol-based VLAN, MAC address-based VLAN |
| LACP dynamic aggregation, Static aggregation | |
| Port Aggregation | Max 18 aggregation groups and 8 ports per group. |
| Spanning Tree | STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s) |
| Industrial Ring | Recovery time less than 20ms |
| Network Protocol | G.8032 (ERPS),250 Ring at most, Max 250 devices per ring. |
| IGMP Snooping v1/v2, Max 1024 multicast groups | |
| Multicast | MLD Snooping v1/v2, Multicast VLAN, Fast log out |
| Port Mirroring | Bidirectional data mirroring based on port |
| Flow-based redirection, Flow-based rate limiting Flow-based packet filtering, Priority Mark/Remark | |
| 8*Output queues of each port, 802.1p/ DSCP priority mapping | |
| Queue Scheduling Algorithm (SP, WRR, SP+WRR), Diff-Serv QoS | |
| QoS | |
| Port-based Issuing ACL,ACL based on port and VLAN | |
| L2 to L4 packet filtering, matching first 80 bytes message. Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc. | |
| ACL | |
| SSH 2.0, SSL, Port isolation, ARP message speed limit User hierarchical management and password protection AAA & RADIUS & TACACS+ certification, MAC learning limit IEEE802.1X & MAC address authentication, ARP inspection | |
| IP-MAC-VLAN-Port binding, Anti-DoS attack, IP source protection | |
| Broadcast storm control, Backup for host datum, Mac black holes | |
| Security | |
| DHCP | DHCP Client, DHCP Snooping, DHCP Server, DHCP Relay |
| Management | Web network management (https) |
